Ubiquiti NanoStation M5/ Loco M5 Wireless Bridge/Base Station
KSh7,500.00 – KSh10,500.00 Ex.VAT
In Stock- Connect two locations or points via wireless, with 5Ghz 802.11n
- Throughput – 150+ Mbps
- Range – 10+ km
- Signal strength, which is reported by the on-board LED indicator
- AP mode, client or WDS with Traffic shaping and QoS
Description
Ubiquiti NanoStations; M5,Loco M5 Wireless Bridge/Base Station.
1. Ubiquiti NanoStation LocoM5 Wireless Bridge/Base Station
The Ubiquiti Nano-station LocoM5 provides a secondary ethernet port with software enabled PoE output for seamless IP Video integration. The unit features a panel antenna and dual-polarity performance, which is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices.
Ubiquiti airMAX NanoStation LocoM5 Features
- Connect two locations or points via wireless, with 5Ghz 802.11n
- Throughput – 150+ Mbps
- Range – 10+ km
- Signal strength, which is reported by the on-board LED indicator
- AP mode, client or WDS with Traffic shaping and QoS
Intelligent POE
Remote hardware reset circuitry of the Ubiquiti NanoStation Loco M5 allows for the device to be reset remotely from power supply location. In addition, any Ubiquiti NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti’s Instant 802.3af adapter.
Ubiquiti airMAX NanoStation LocoM5 – Technical Specifications
System Information
- Processor Specs: Atheros MIPS 24KC, 400 MHz
- Memory: 32 MB SDRAM, 8 MB Flash
- Networking Interface: (1) 10/100 Ethernet Port
Regulatory/Compliance Information
- Wireless Approvals: FCC Part 90Z
- RoHS Compliance: Yes
Physical/Electrical/Environmental
- Dimensions (mm): 163 x 31 x 80
- Weight: 0.18 kg
- Power Supply (PoE): 24V, 0.5A
- Max. Power Consumption: 5.5 W
- Gain: 13 dBi
- Polarisation: Dual Linear
- Enclosure Characteristics: Outdoor UV Stabilised Plastic
- Mounting: Pole Mounting Kit Included
- Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
- Operating Temperature: -30 to 75° C
- Operating Humidity: 5 to 95% Condensing
- Shock and Vibration: ETSI300-019-1.4
Operating Frequency Summary (MHz)
- Worldwide: 5170 – 5875
- USA: 5725 – 5850
- USA DFS: 5250 – 5850
Antenna Information
- Gain: 13 dBi
- Cross-pol Isolation: 20 dB Minimum
- Max. VSWR: 1.4:1
- Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)

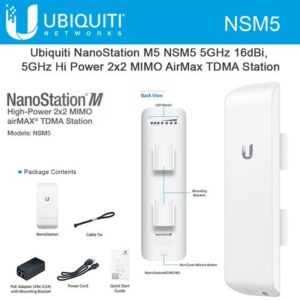

2.Ubiquiti NanoStation M5 (NSM5)
Ubiquiti NanoStation M5 (NSM5); Indoor/Outdoor airMAX® CPE
Featuring a panel antenna and dual-polarity performance, the NanoStation M5 is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
| Frequency | 5 GHz |
| Throughput | 150+ Mbps |
| Range | 15 km |
| Gain | 16 dBi |
Additional information
| Models | Ubiquiti NanoStation M5, Ubiquiti NanoStation Loco M5 |
|---|
